First-party Tag Gateway

What the gateway changes#

By default the tracker file loads from the AdPix CDN host and the beacon goes to the AdPix collector host. Both are hosts outside your site: ad-blocker lists know them, and the cookie the collector wanted to write is a third-party cookie.

With the Tag Gateway, a subdomain of your own domain — metrics.<your domain> by default — sits in front of all that traffic and proxies it to AdPix.

Identity works in both modes; in direct mode it rides the durable ID the tracker keeps in local storage. What the gateway adds is longer persistence and a much smaller blocked surface.

What you need#

• Access to the domain's DNS, for one CNAME record.
• A reverse proxy holding a TLS certificate for that subdomain. The console generates ready configs for Caddy, nginx and a Cloudflare Worker.
• Editor level or above on the property — generating a bundle mints a credential, so it is protected like any property-settings change. Viewing an existing bundle only needs report-read access.

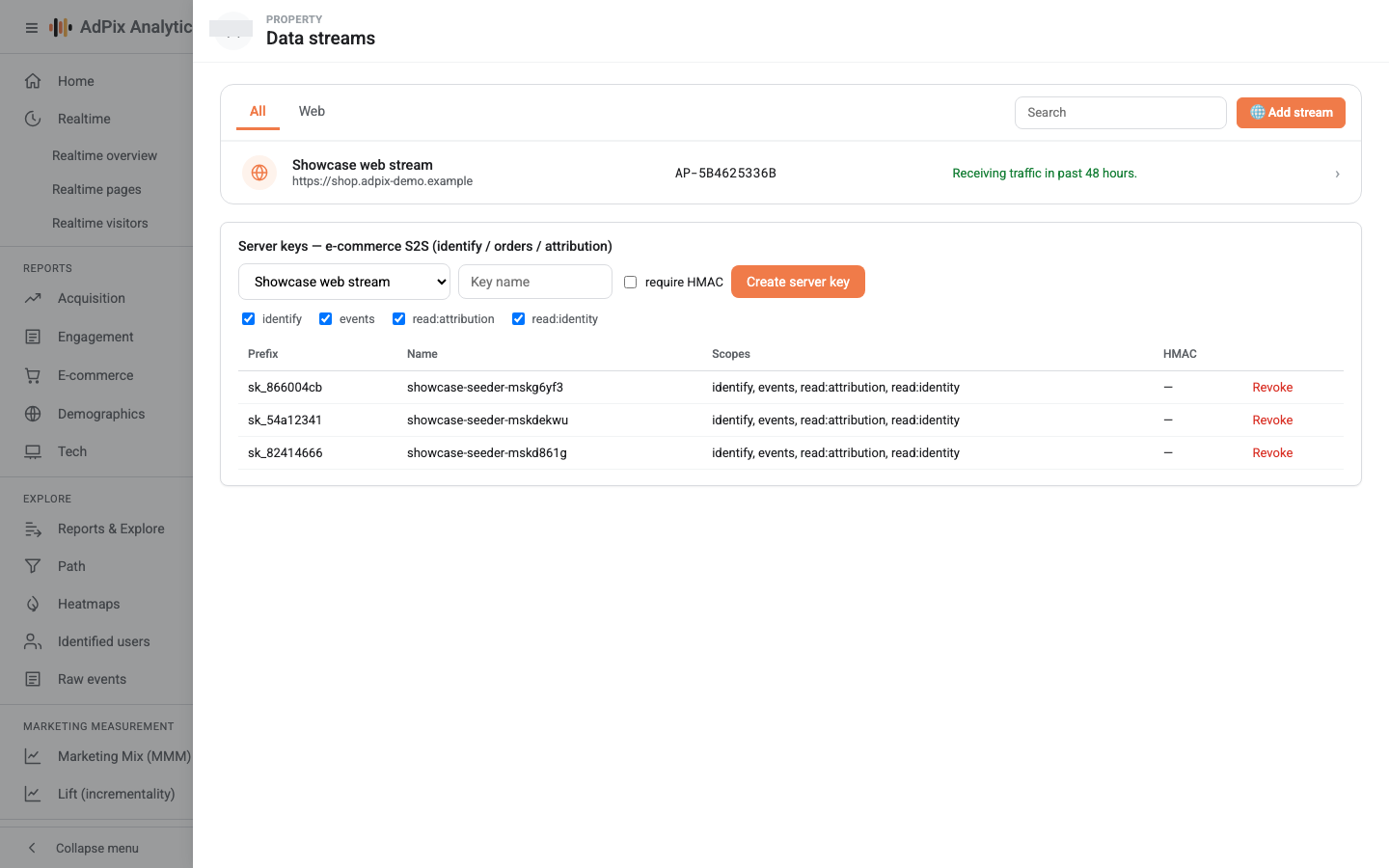

Generate the bundle#

Each data stream's bundle is stored on the stream itself — the token is kept encrypted and the bundle is re-rendered every time you open the section. So you do not have to keep a copy anywhere, and you never have to regenerate just to read it again. The standalone wizard under Settings behaves the older way: it shows the token once.

The paths that must be proxied#

This is the most important part of the page. The generated config carries a strict allowlist, and anything outside it gets a 404. The list is the entire tracker surface, not just the tracker file and the beacon:

The Caddy, nginx and Cloudflare Worker versions are rendered from one source, so all three carry exactly this list. If you run a different proxy, port the whole list to it.

The headers the proxy adds#

The generated config sets four headers on every request:

Take the last two seriously: without them the collector sees your proxy server's IP, and country, city and network collapse to one value for every visitor. The Caddy and nginx configs set all four; the Cloudflare Worker sets only the two X-Site-* headers, because Cloudflare already forwards the visitor's address itself.

Any request carrying X-Site-Key must also carry a valid X-Site-Token, or the answer is a 403. Direct-mode requests, which do not carry that header, are unaffected.

Rotating the token with no downtime#

The proxy token is a credential and sooner or later has to change — after someone leaves, after a config leak, or simply as periodic hygiene. Only an argon2id hash of it is stored.

The detail that makes rotation painless: the collector accepts any non-revoked token for that property. Several tokens can be valid at once.

Listing and revoking happen through the API:

curl 'https://api.adpix.io/api/v1/proxy-tokens?site=<property_id>' \
  -H 'Cookie: ap_admin=…'

{
  "site_id": "…",
  "tokens": [
    { "prefix": "9f2a1c40", "created_at": "…", "revoked_at": "",  "active": true  },
    { "prefix": "3b7e0d55", "created_at": "…", "revoked_at": "…", "active": false }
  ]
}

curl -X DELETE 'https://api.adpix.io/api/v1/proxy-tokens?site=<property_id>&prefix=3b7e0d55' \
  -H 'Cookie: ap_admin=…'

The list shows only each token's eight-character prefix, never the value itself; that prefix is what revoking takes. Listing needs report-read access; revoking needs the property-settings edit capability.

Diagnosing it#

The same Tag-Gateway section runs a diagnostic. Four checks run in order, each with its own remediation:

The first three are diagnostic — they explain why data is not arriving. The fourth is definitive: the stream is not marked verified until a real event lands.

The stream's own status shows the same thing and has five states: awaiting install, proxy live, tag found in the page source, receiving data, and error. Only "receiving data" means you are done.

You can also call the health URL yourself; it is printed in the bundle, and a 200 means the proxy is alive and reaching AdPix.

After it is live#

• Swap the snippet. While your page still loads the direct tag, the gateway is up but no traffic goes through it.
• Keep one install path. Do not load the tag from both your site template and a tag manager.
• Re-run the diagnostic after every proxy change. A Caddy or nginx upgrade sometimes loses the path list, and the first symptom is an empty consent banner or an empty heatmap — not a drop in page views.

The headers and cookies of this path are listed in Cookies and headers, and the exact shape of the send envelope is in The collect envelope.
